      How do I create Cross Reference Configurations in Lumino?

      Create a Cross Reference Configuration in Lumino

      This ability is only available for Customer Designer, this area is read only for Customer User

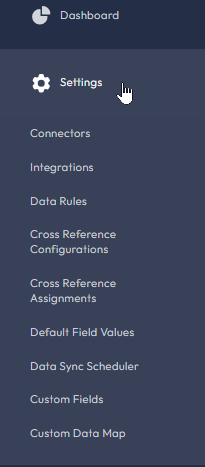

      1. Navigate to https://lumino.ariox.com/ and click on Settings.

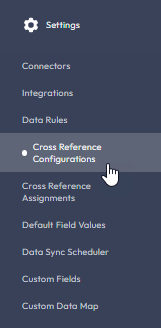

      2. Select Cross Reference Configurations from the dropdown menu.


      3. Click Create Cross Reference Configuration.

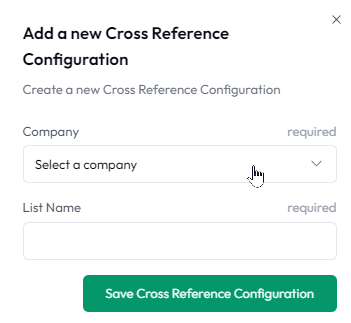

      4. Select the Company from the dropdown list. As a Partner Customer Designer level user, this path is how you will specify the Customer (Child Company) you are creating the Cross Reference Configuration for.

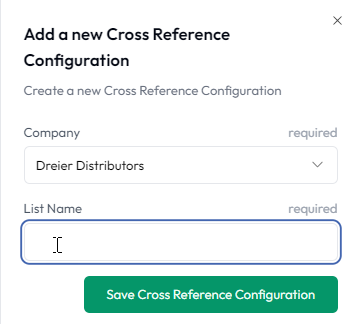

      5. Enter a List Name.



      6. Click Save Cross Reference Configuration.

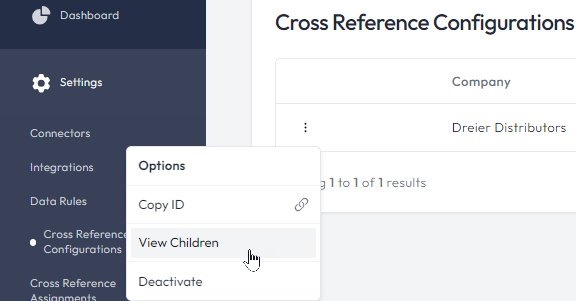

      7. Click on the ellipses and select View Children

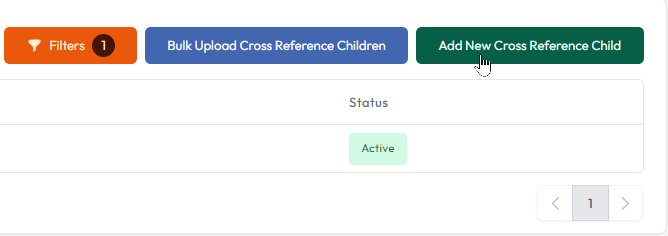

      8. Click on Add new Cross Reference Child.

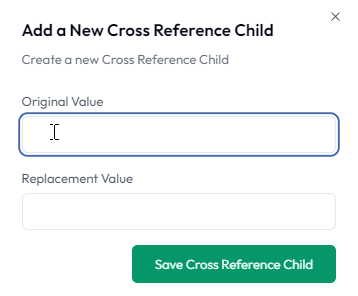

      9. Enter the Original Value that you would like to replace with the Replacement Value if the original value is found in the field you will specify in the Cross Reference Assignment module.
      10. Click Save Cross Reference Child to save the record and repeat as needed to fill your list.
