How do I add Connectors to Lumino?

Adding Connectors to Lumino.

1. Navigate to https://lumino.ariox.com/ and click Settings followed by Connectors  or you can access from the Company Management page per the steps below:
   1. Navigate to https://lumino.ariox.com/ and click Account, followed by Company Management.
   2. Click the Connectors button.
2. Click the Add New Connector button to add a new Connector.

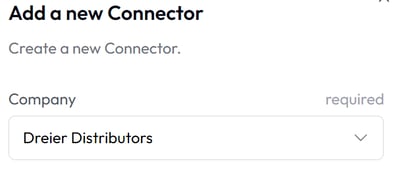

3. Select Company name from the drop down menu. Partner level Customer Designers will be able to select from their customers (Child Companies).

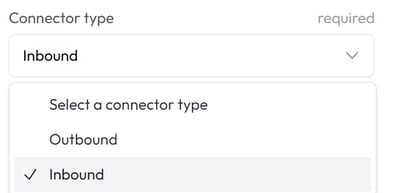

   Select the desired connector type Outbound (Source) or Inbound (Destination) system from the drop-down list.
4. Select the System the connector is for from the drop-down list.
5. Select your Time Zone from the drop-down list.
6. Select the System Classification from the drop-down list.
7. Enter the Connector Name for your connector from the drop-down list (this name must be unique for each of your connectors).
8. Enter the URL to access the system or if there is a physical file to access, enter the path to its location on your hardware. If the system is on premise vs cloud based, click to check the On-Premise Service box. If the authentication is OAuth, click to check the Is OAuth Authentication box.
9. Enter the login info for the source: username, password, and Client id. Private Key and additional fields may be necessary depending on your system, consult the List of Mandatory Variables provided by Ariox, for each applicable Outbound or Inbound connector type.
10. Click the Save Company Connector button to save.
